Sliding door (4 panels on 2 tracks)

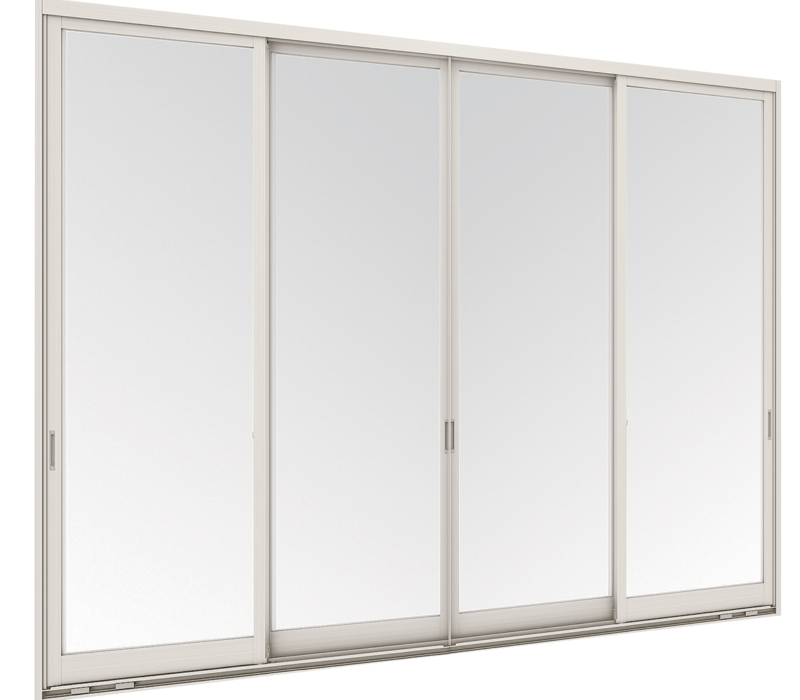

Aluminium Sliding door - 4 panels on 2 tracks

color

Sliding door (4 panels on 2 tracks)

Air Tightness

Air Tightness

JIS: A-3

Noise Pollution

Noise Insulation

JIS: 25 dB

Water Tightness

Water Tightness

JIS: W-2 (150 Pa)

Wind Pressure

Wind Pressure Resistance

JIS: S-1 (800 Pa)

Dimensions

Frame Depth

72 mm (2 tracks sliding), 104 (3 tracks sliding)

Maximum Height of Door - Standard Type

3030 mm

Height of Sill

50 mm

Glass Groove

11 mm

Glass Thickness

5 / 6 / 8 mm

Setting of Sliding Insect Screen

Outside

UNIQUE FEATURES

Aluminium Entrance sliding door - Prevents rain water intrusion

Watertight sill with drainage devices that prevents rain water intrusion

Aluminium Entrance sliding door - Vertical panel frame

Vertical panel frame that provides easy opening and closing

Aluminium Entrance sliding door - Easily adjustable outer-panel lock

The easily adjustable outer-panel lock

Aluminium Entrance sliding door - High quality security lock

High quality security lock

Aluminium Entrance Sliding Door - High security sub-lock

The high security sub-lock come standard

Aluminium Entrance sliding door - Sliding external insect screen

Sliding external insect screen
