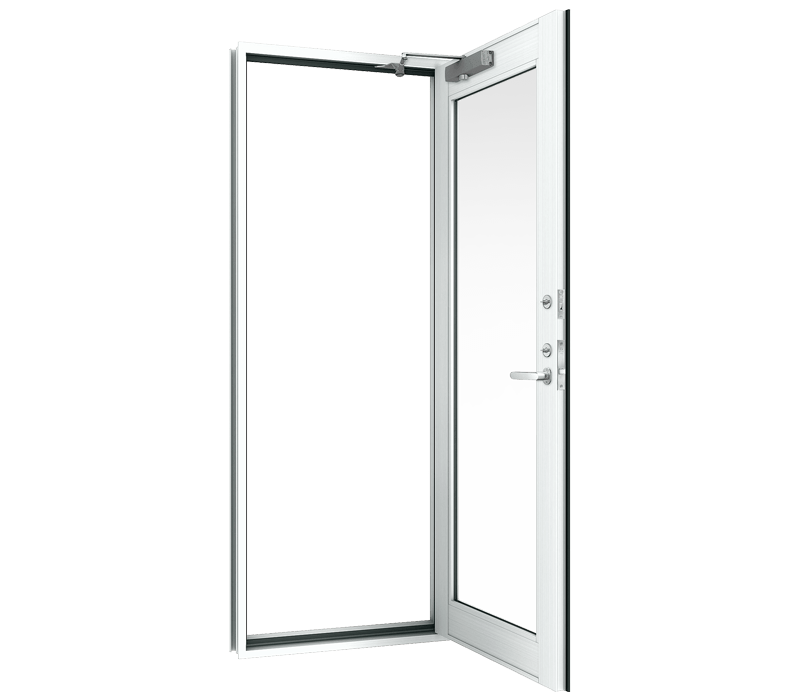

Out-Swing door (single)

Out-Swing - Aluminium Door Design

Out-Swing door (single)

Air Tightness
Air Tightness
JIS: A-4
Noise Pollution
Noise Insulation
JIS: 25dB
Water Tightness
Water Tightness
JIS: W-3 (250Pa)
Wind Pressure
Wind Pressure Resistance
JIS: S-2 (1200Pa)


Frame Depth
101.6 mm
Maximum Height of Door - Standard Type
2390 mm
Maximum Height of Door - Large Type
3030 mm
Height of Sill
50 mm
Glass Groove
11 mm
Glass Thickness
5 / 6 / 8 mm
Setting of Sliding Insect Screen


Aluminium Entrance sliding door - Prevents rain water intrusion

Watertight sill with drainage devices prevents rain water

Aluminium Entrance sliding door - Vertical panel frame

Vertical panel frame that enables easy opening and closing

Aluminium Entrance sliding door - Easily adjustable outer-panel lock

Easily adjustable outer-panel lock

Aluminium Entrance sliding door - High quality security lock

High quality security lock

Aluminium Entrance Sliding Door - High security sub-lock

High security sub-lock

Aluminium Entrance sliding door - Sliding external insect screen

Sliding external insect screen
