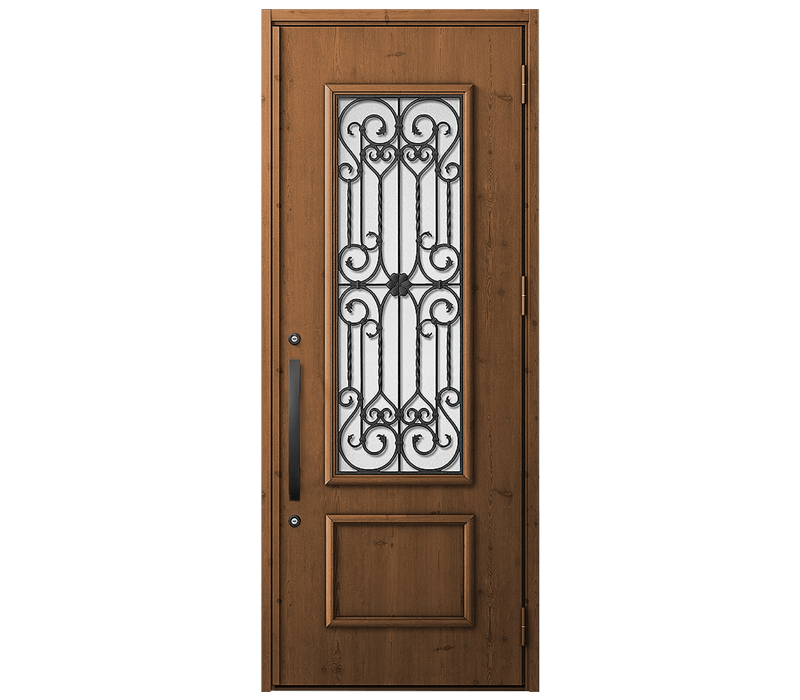

Entrance Door – G01 Manufacture in india

JIS: S-2 (1200 Pa)
ASTM: 1200 Pa

Out-Swing: JS: W-2 (150 Pa)
ASTM: 150 Pa
In-Swing: Not rated

Out-Swing: JIS: A-4
ASTM: 75 Pa
In-Swing: Not rated

4.07 [W/(m^2.k)]

No rated

Frame Depth

101.6 mm

Height of sill

50 mm (Out-Swing) and 14 mm Inside, 30 mm Outside (In-Swing)

Door materials - Door Frame - Frame

Wood pattern type: Wood pattern resin sheet, wrapping on aluminium profile with synthetic rubber

Door materials - Door Frame - Frame

Painted type: Anodized aluminium profile

Door materials - Door Frame - Sill

Anodized aluminium profile

Door materials - Door Panel - External Sheet

Wood pattern type: (External) Rasin laminated sheet/ (Internal) Anti-rust epoxy coating

Door materials - Door Panel - External Sheet

Paint type: (External) Polyester-polymer painting/ (Internal) Anti-rust epoxy coating

Door materials - Door Panel - Inner Core

Polystyrene (EPS Foam)

Door materials - Door Panel - Glass

Insulating glass thickness 23 mm (3+Air gab 16+4)

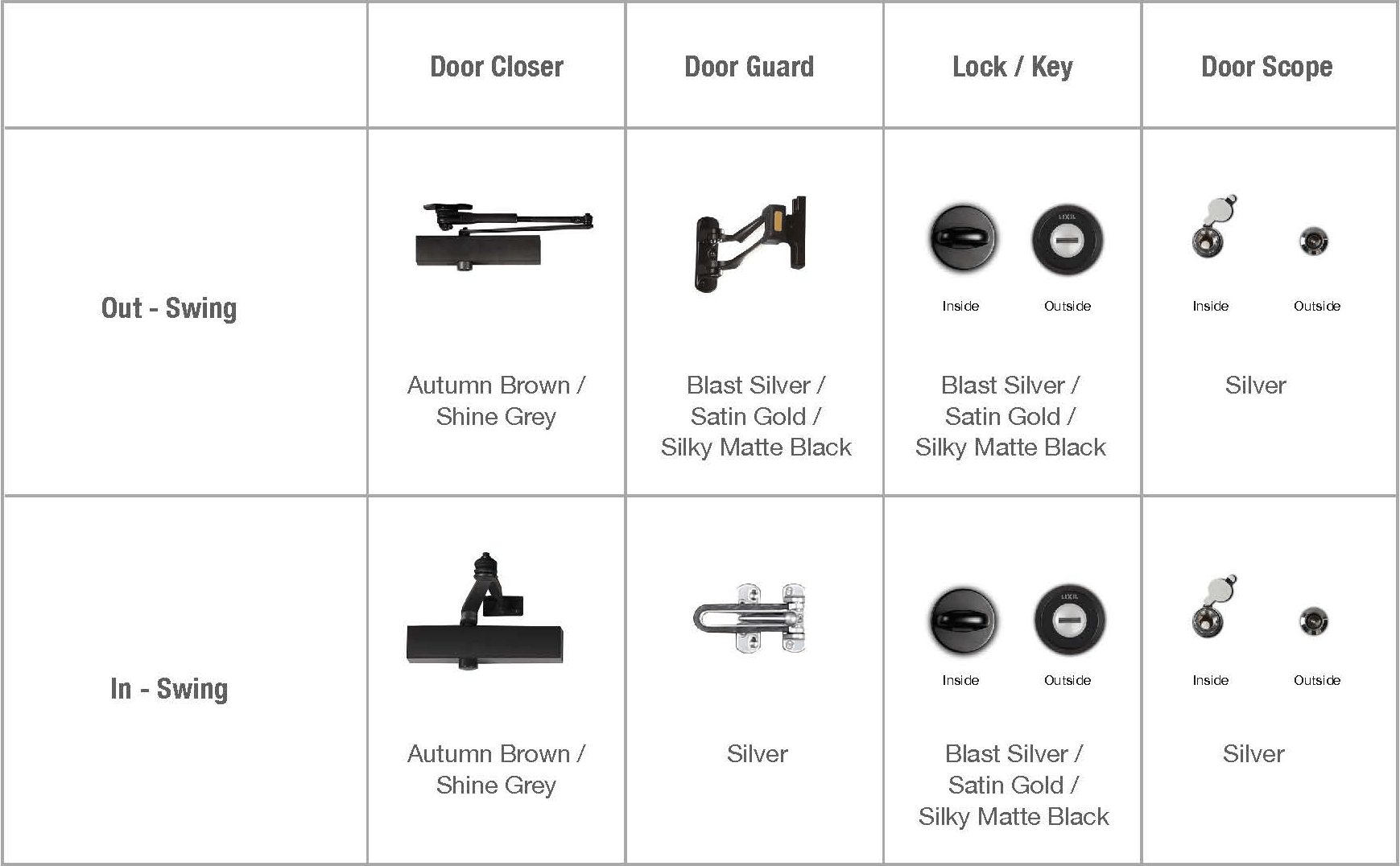

Part and Accessories - Handle and Lock set - Handle

Aluminium

Part and Accessories - Handle and Lock set - Cylinder

Steel with resin coating

Part and Accessories - Door Closer

Aluminium

Part and Accessories - Hinges

Aluminium

Key Set - Owner Key

5 keys (1 original key + 4 copy keys)

Key Set - Construction Key

3 keys (Become unusable once owner key operated)
